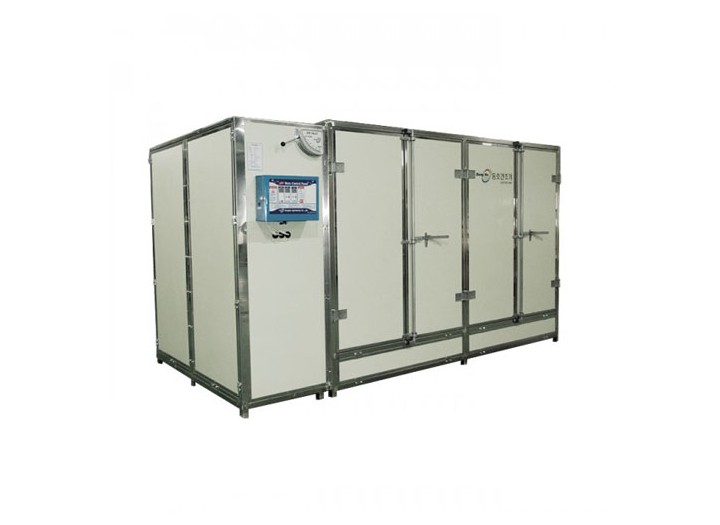

ADE-20SW
| – High power and large capacity | |
|---|---|
| – Even and fast drying with hot air from the left and right sides | |
| – Clean drying by applying electric heater | |
| Safe power use is possible with the sequential start-up method (12Kw 3-step start) of the large capacity heater (36Kw). | |
| – Reduce operating costs through heat generation from electrical energy | |
| – An advanced hot air supply system that generates horizontal hot air from all side walls of the drying room. |
본문
Standard Specifications < Standard Specifications can be adjusted to meet customer requirements>
| Model name | ADE-20SW | |
|---|---|---|
| Appearance Specification (mm) |
Length | 3600 |
| Width | 1980 | |
| Height | 2040 | |
| Weight(Kg) | 1300 | |
| Drying capacity * | Dry area (㎡) | 60 |
| Dried amount based on red pepper(Kg) | 1120 | |
| Number of trays (ea) | 112 | |
| Size of tray (㎜) | 885 X 605 X 50 | |
| Spacing of trays (㎜) | 95 | |
| Electricity Specification | 380V Three Phase | |
| Electric heater | Type | Pin-tube type |
| Control method | On-Off Control | |
| Heat generation (Kcal/hr) | 30,000 | |
| Air blower | Type | Axial flow type / Type F motor |
| Motor Power (㎾) | 2.7 | |

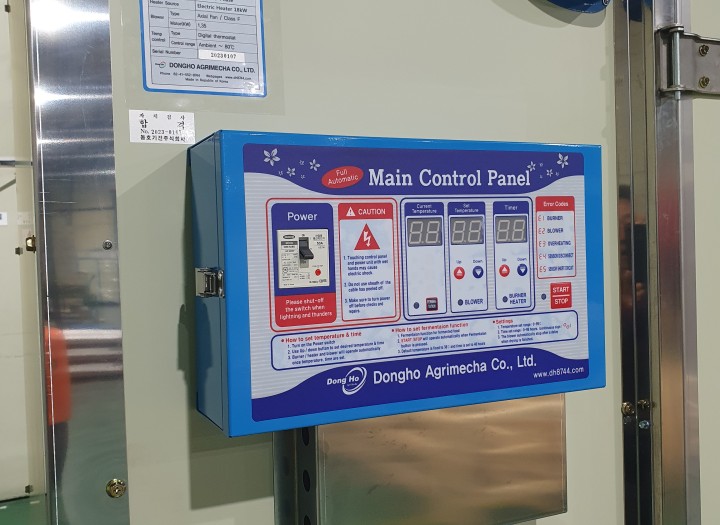

| Temperature control |
Type | Digital thermostat |
| Measurement temperature | Dry-bulb temperature | |
| Control range | Room temperature~90℃ | |
| Instruction range | 0 ~ 99 ℃ | |
* Drying capacity is measured based on standard shelves.
