Electric dryer

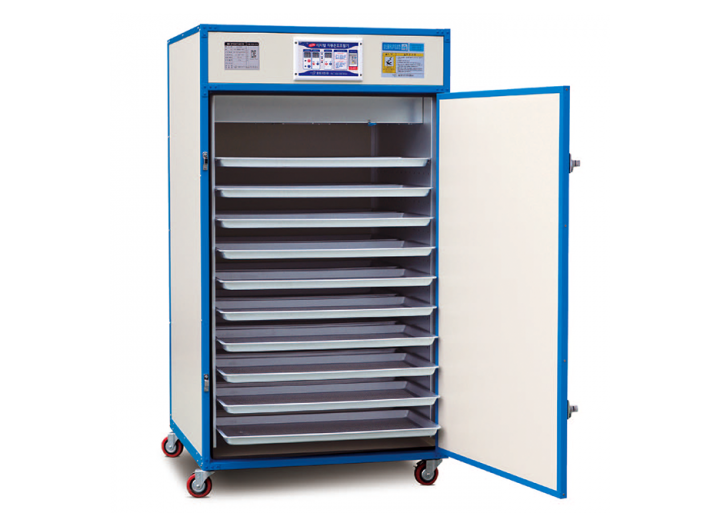

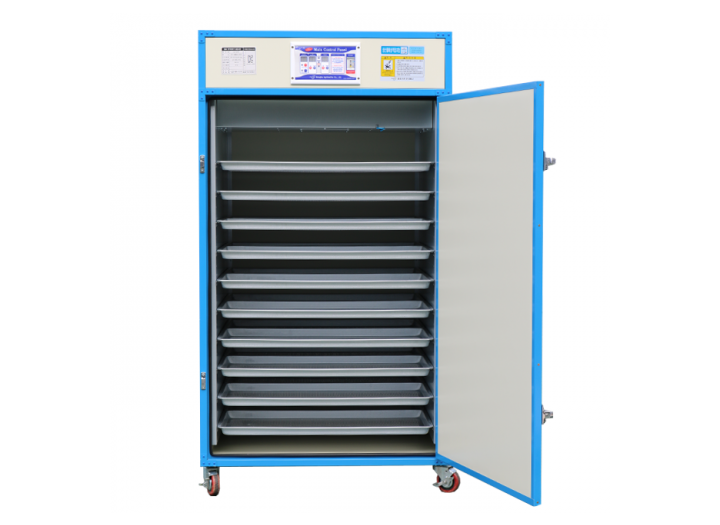

EQ-04SW

Characteristics
– Small and Medium-Sized Multipurpose Food Dryer
– Even and fast drying with hot air from the left and right sides
– Excellent durable pin type electric heater
– Powerful Turbo-type blower application blower
– Simple design and caster-type wheels increase convenience of installation and movement

본문

Standard Specifications < Standard Specifications can be adjusted to meet customer requirements>

Model name EQ-04SW
Appearance Specification (mm) Length 1035
Width 1020
Height 1850
Weight(Kg) 181
Drying capacity * Dried amount based on red pepper (Kg) 80 ~ 150
Number of trays (ea) 20
Size of tray (㎟) 885 X 460 X 50
Spacing of trays (㎜) 120
Electricity Specification 220V * 60/50Hz * Single Phase
Electric heater Type Pin-tube type
Heat generation (㎾) 4.0
Blower Type Turbo Type
Motor Power (㎾) 0.35
Temperature control Type Digital Thermostat Type
Measurement temperature Dry-bulb temperature
Control range Room temperature to 70℃.

* Drying capacity is measured on a standard shelf
